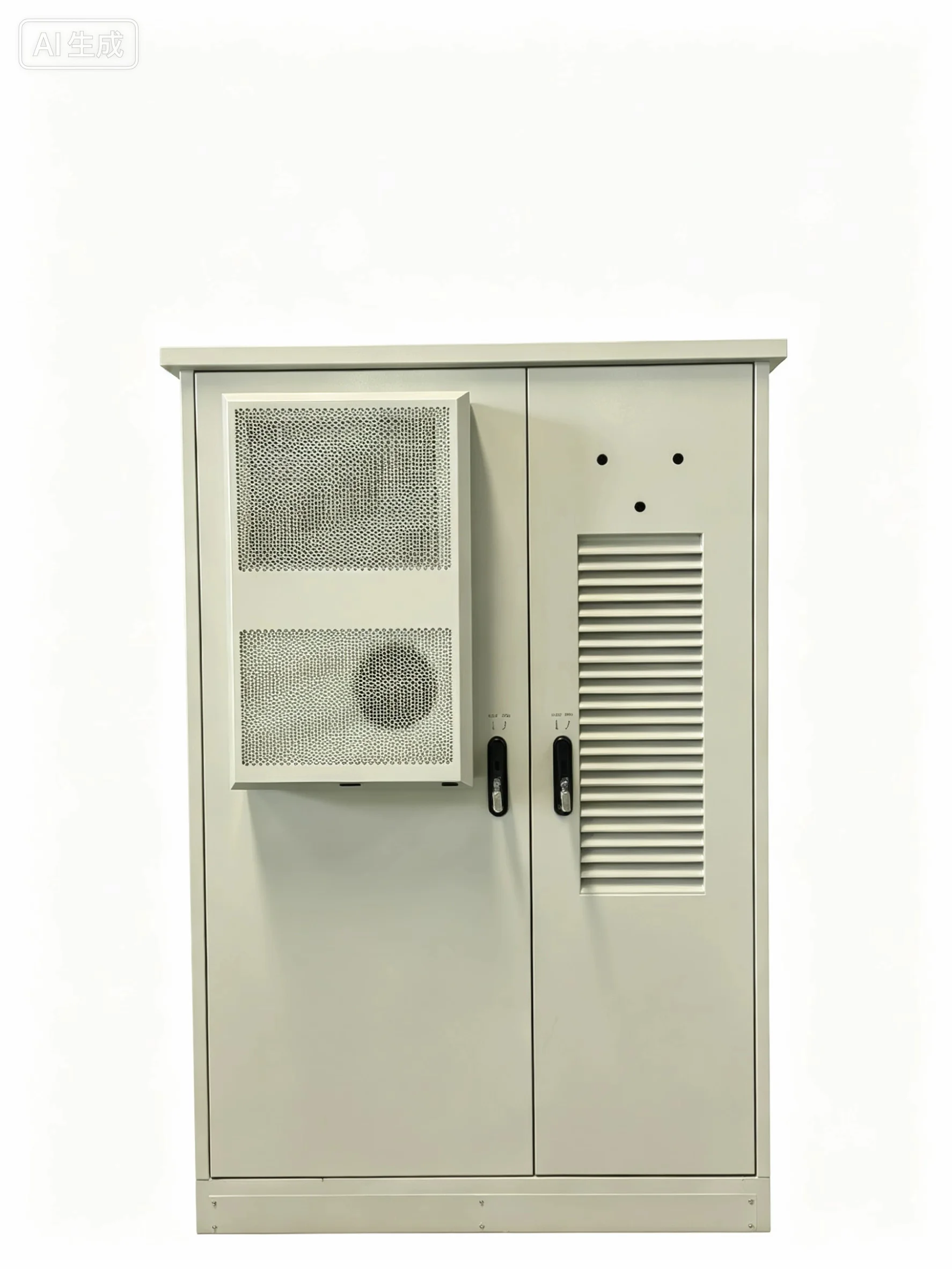

YuYue Model YY-190612501000 50KWh Outdoor Energy Storage Cabinet. The overall structure is welded with galvanized steel sheets, and the interior is lined with 20mm thick PEF thermal insulation cotton. The cabinet reaches IP54 dust-proof and rain-proof rating, and can be deployed long term in various harsh field environments. This energy storage cabinet provides installation space for 10 sets of 51.2V 100Ah rack-mount lithium iron phosphate batteries, as well as PCS, high voltage box, EMS and power distribution unit.

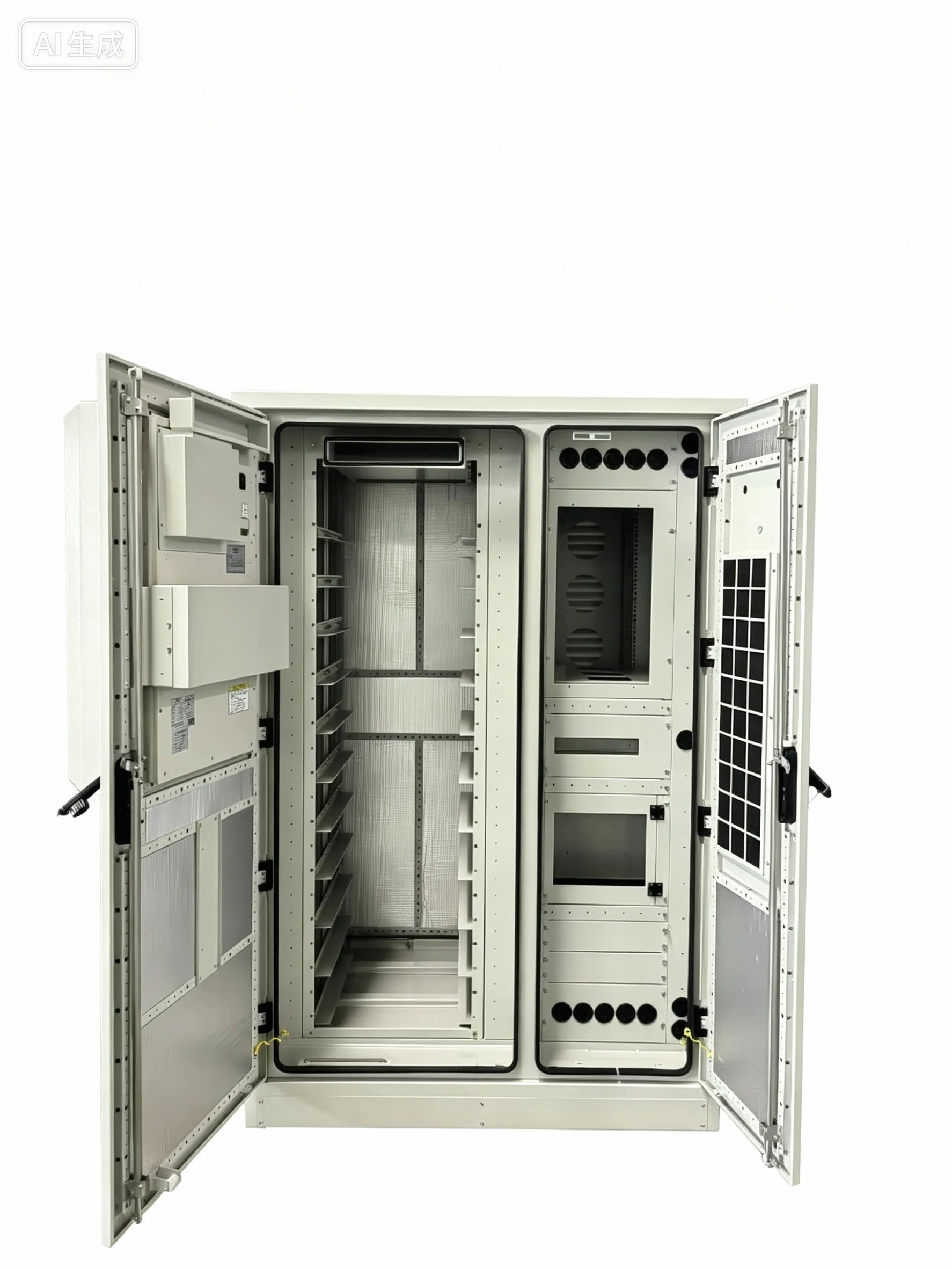

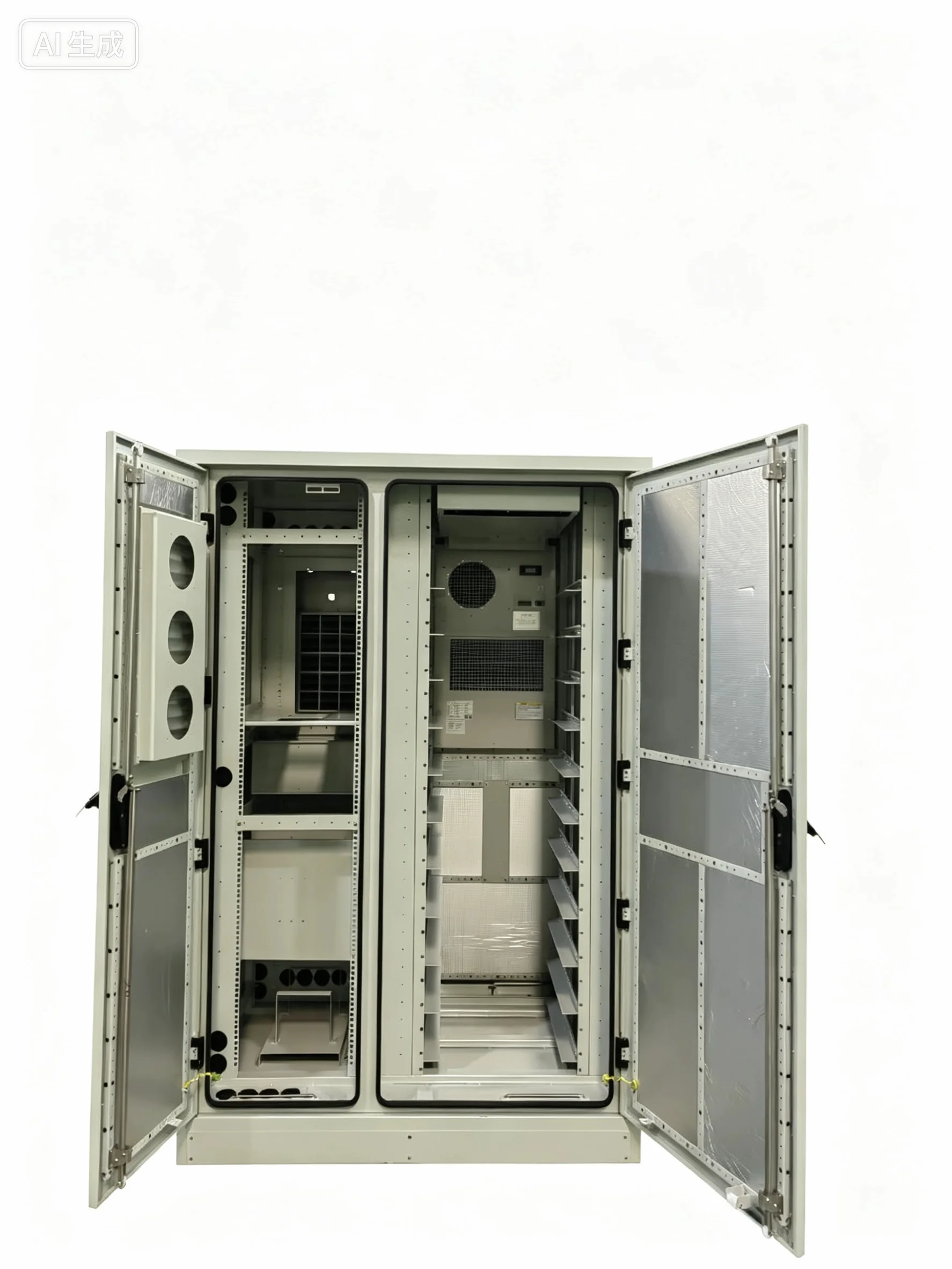

The energy storage cabinet is divided into a battery compartment and a PCS compartment. The battery compartment adopts an airconditioner with 2 kW cooling capacity for temperature control, while the PCS compartment uses fans for direct exhaust ventilation. It greatly secures the operating environment for internal batteries and other electrical components, so as to extend their service life.

An optional built-in aerosol fire extinguishing device can be installed in the cabinet, which can quickly respond to and put out internal fires, fundamentally avoid the risk of equipment spontaneous combustion, and fully guarantee the operation safety of the whole energy storage system.

Technical Specifications
