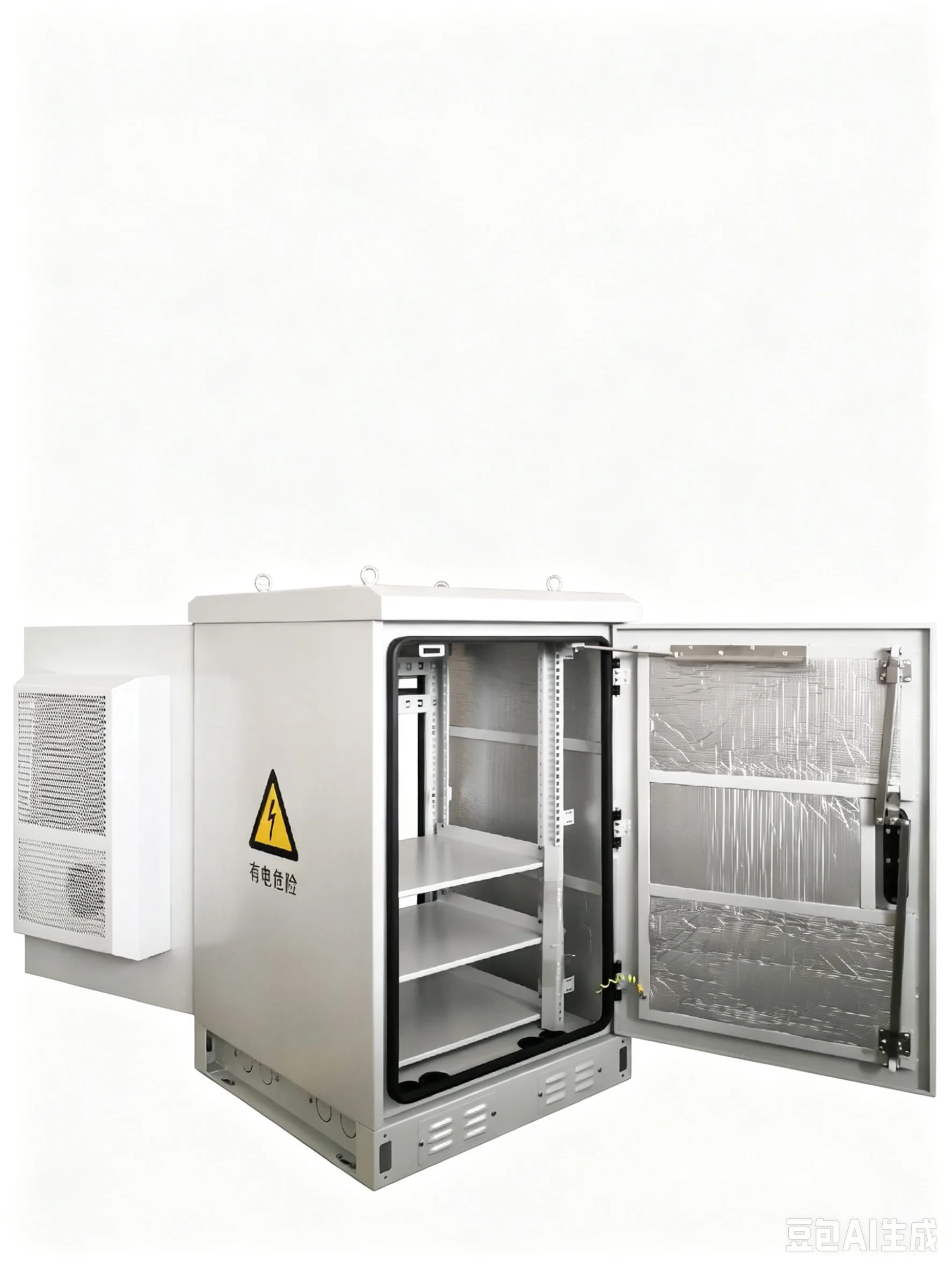

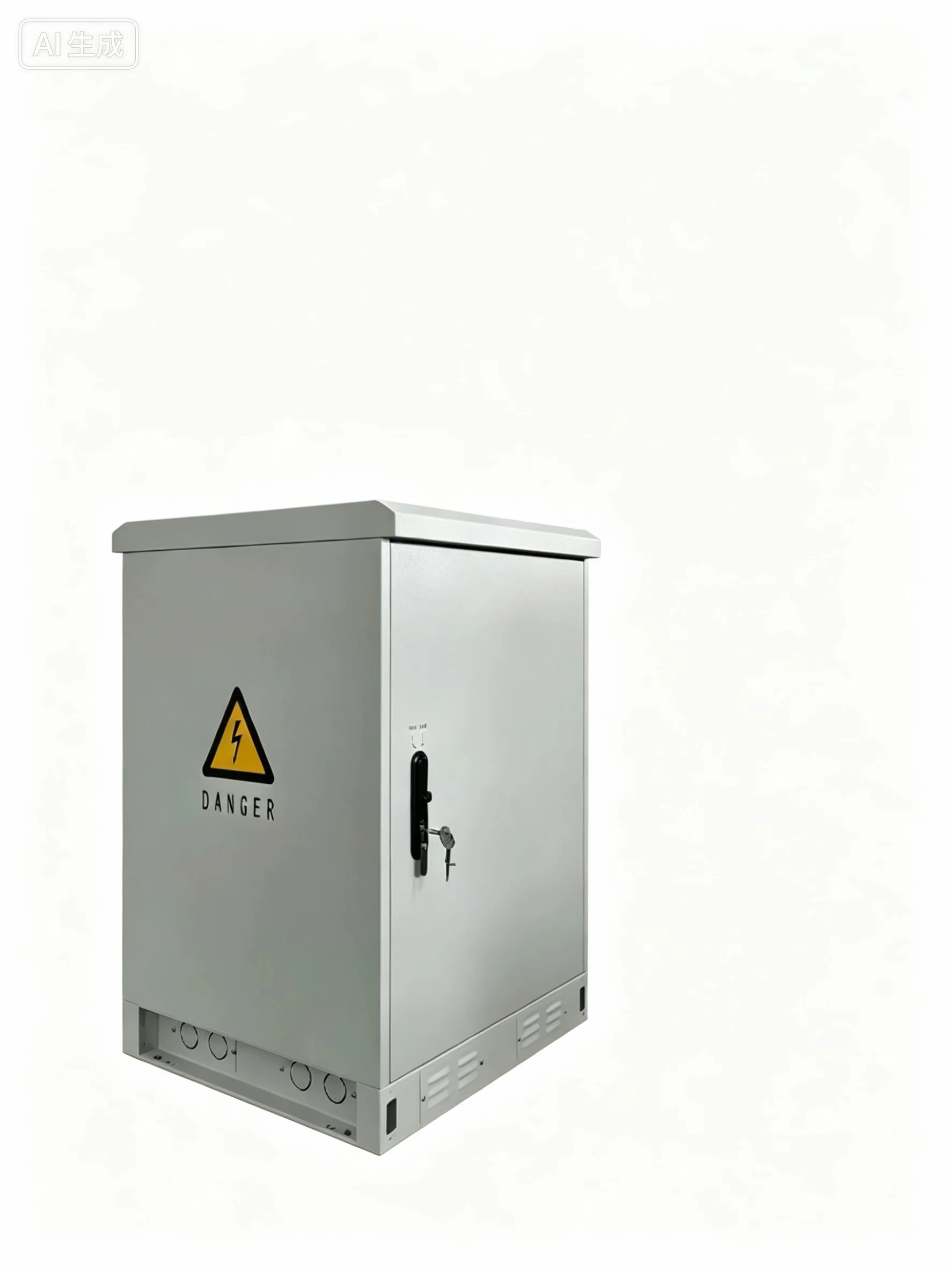

YuYue YY-100006500650 18U Outdoor Air-Conditioned Cabinet. The cabinet frame is welded from galvanized steel sheets, lined internally with 20 mm thick PEF thermal insulation cotton. Front and rear double door design for floor mount installation. The interior adopts standard 19 inch rack; L shaped support bars or mounting shelves can be configured according to customers’ actual equipment mounting requirements.

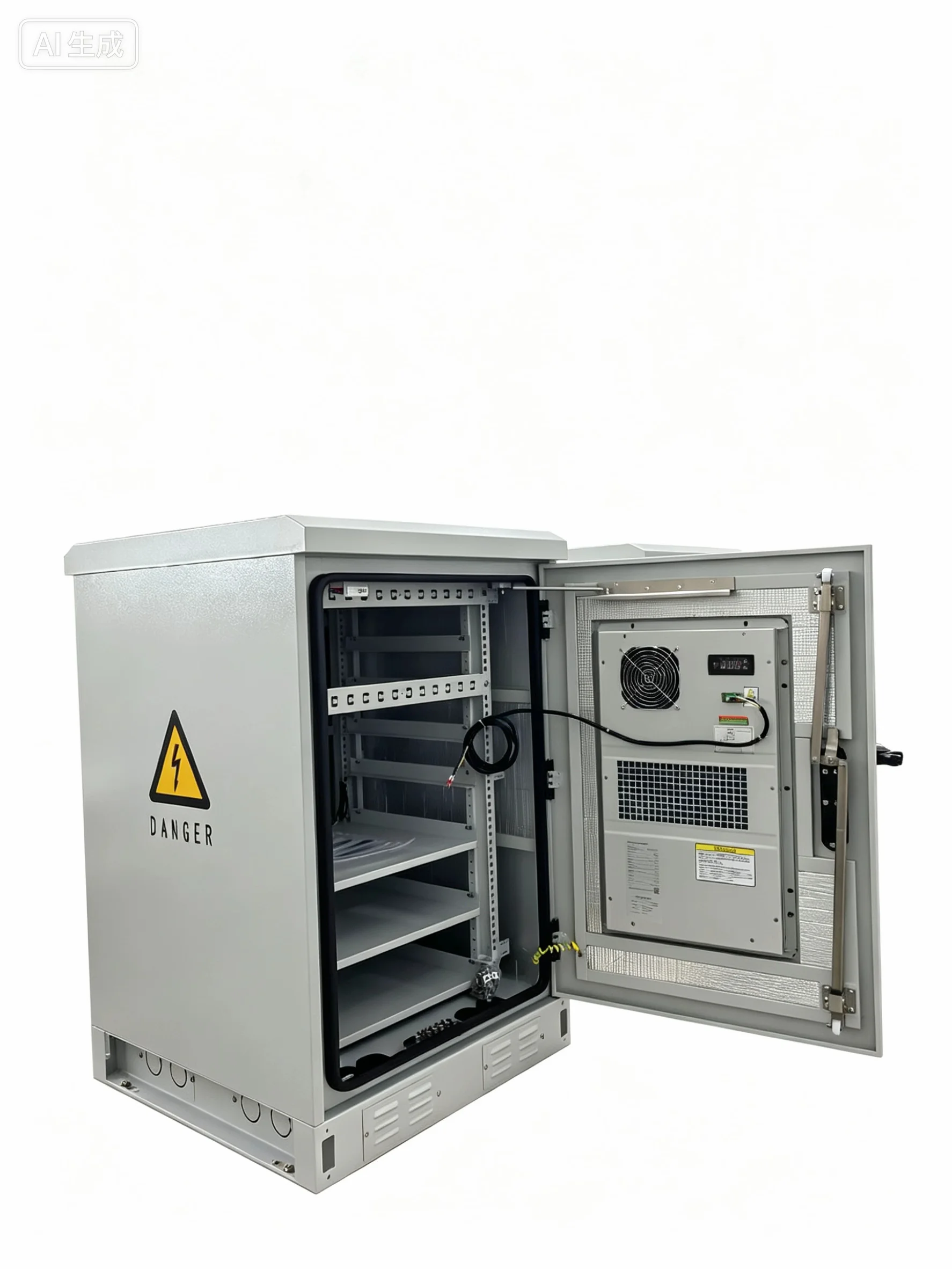

Semi recessed cabinet air conditioner is fitted on the cabinet door for temperature control without occupying inner cabinet space. It features rain proof and dust proof performance, effectively securing the operating environment for internal electronic devices and extending the service life . Suitable for various harsh field environments.
Technical Specifications
Product name | Outdoor Cabinet（18U） |
Model | YY-100006500650 |
Dimension（HxWxD） | External dimension：1000x650x650mm Inner dimension：850x600x600mm |
Material | Galvanized sheet |
Insulation thickness | 20mm thick PEF insulation cotton |
Maintenance method | Front and back opening doors |
Assembling method | Floor |
Rack size | 19 inch rack+3 layer boards+2 pairs of L-shaped support bars |
Protection level | IP55 |
Working temperature | -40℃～+55℃ |
Cool system | Air conditioner, cooling capacity: 600W， AC220V， Optional heating function |
