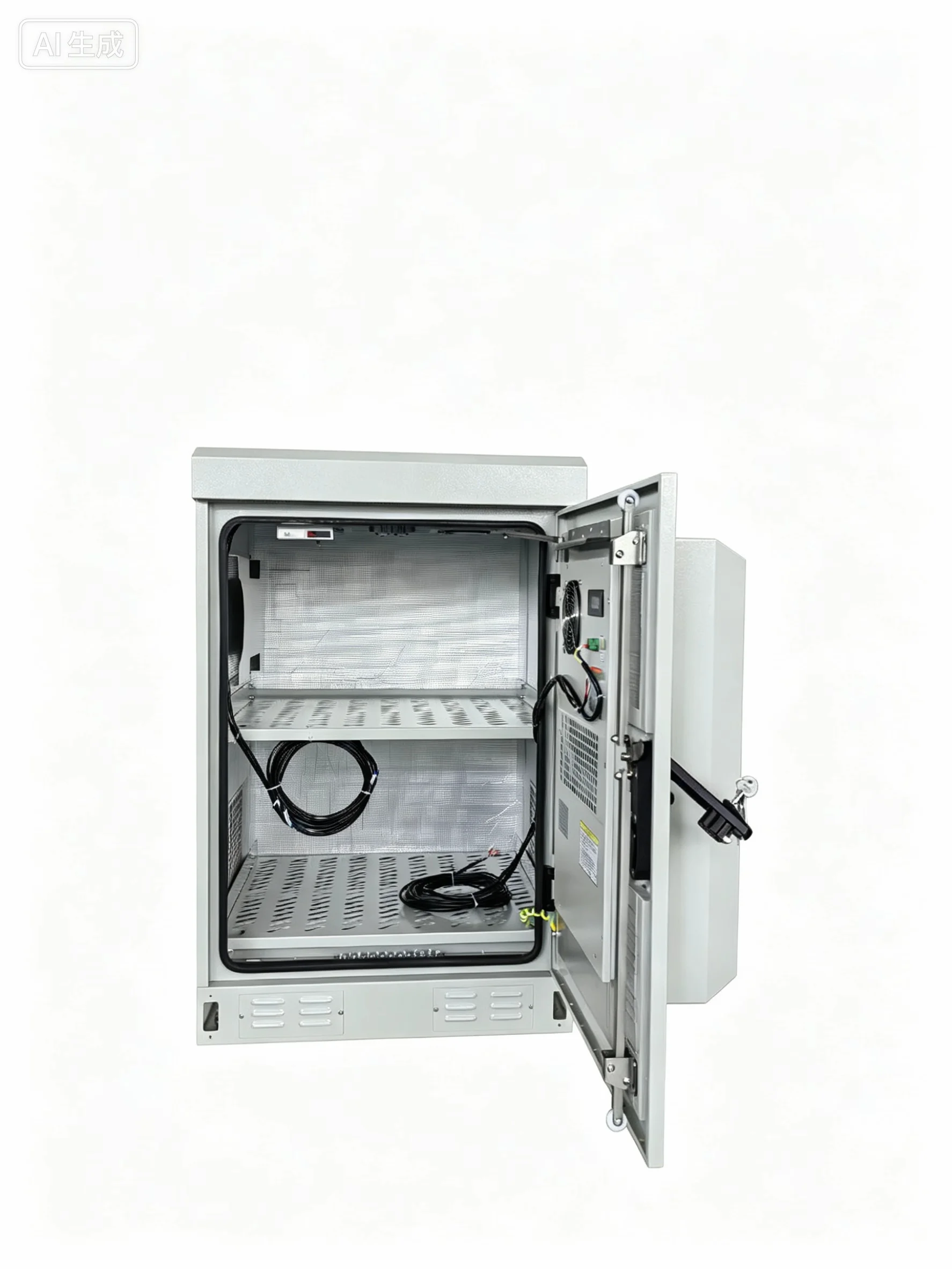

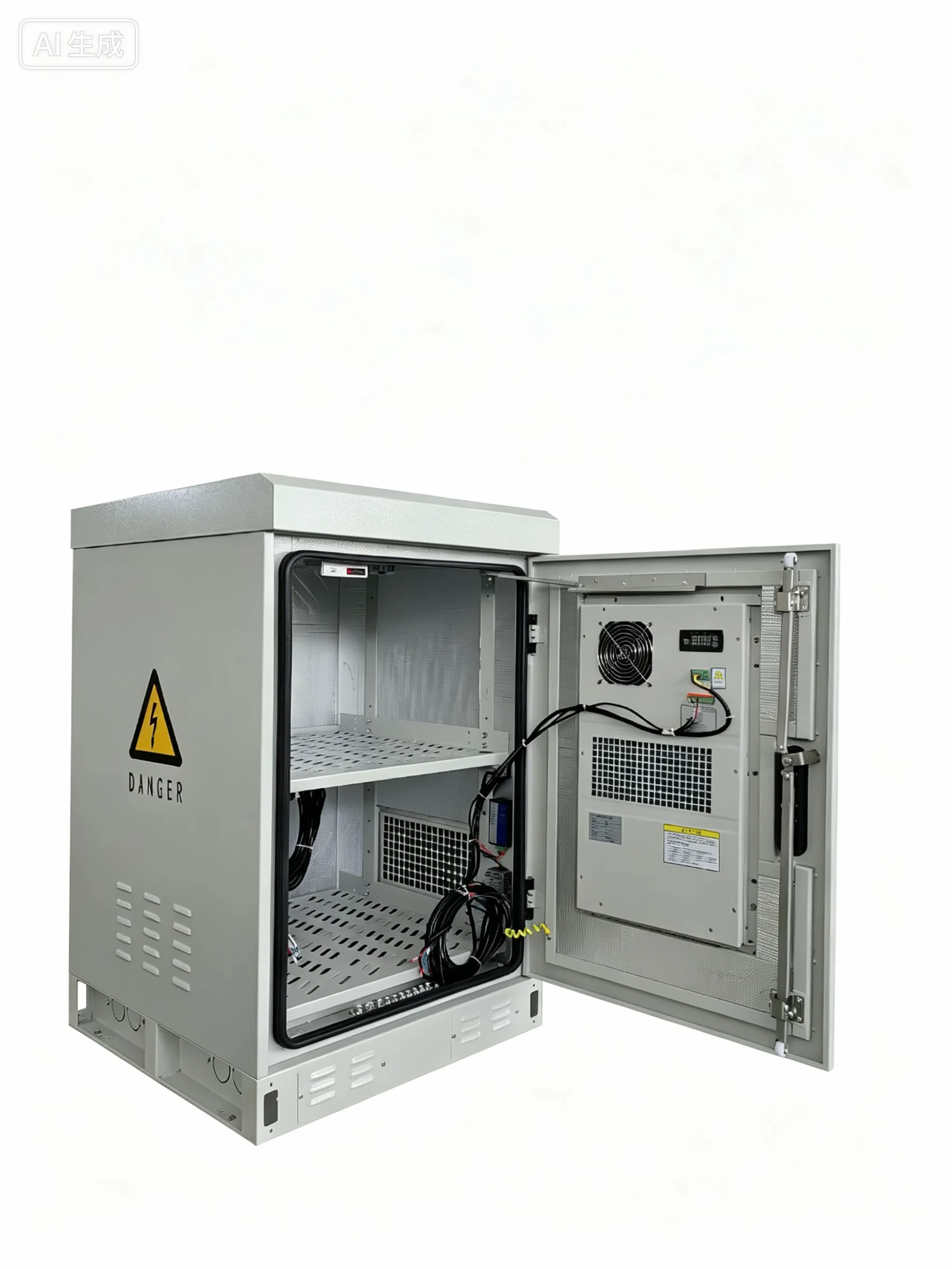

YuYue EC-8-FT12V150-2T1L-DC500W Outdoor Air-Conditioned Lead-Acid Battery Cabinet for Communication Base Station. Its frame is fabricated by welding galvanized steel sheets, with 20mm thick PEF thermal insulation cotton adhered to the interior. It features a single front door and floor-mount installation. The internal two tier battery rack provides mounting space for eight 12 V 150 Ah lead-acid batteries.

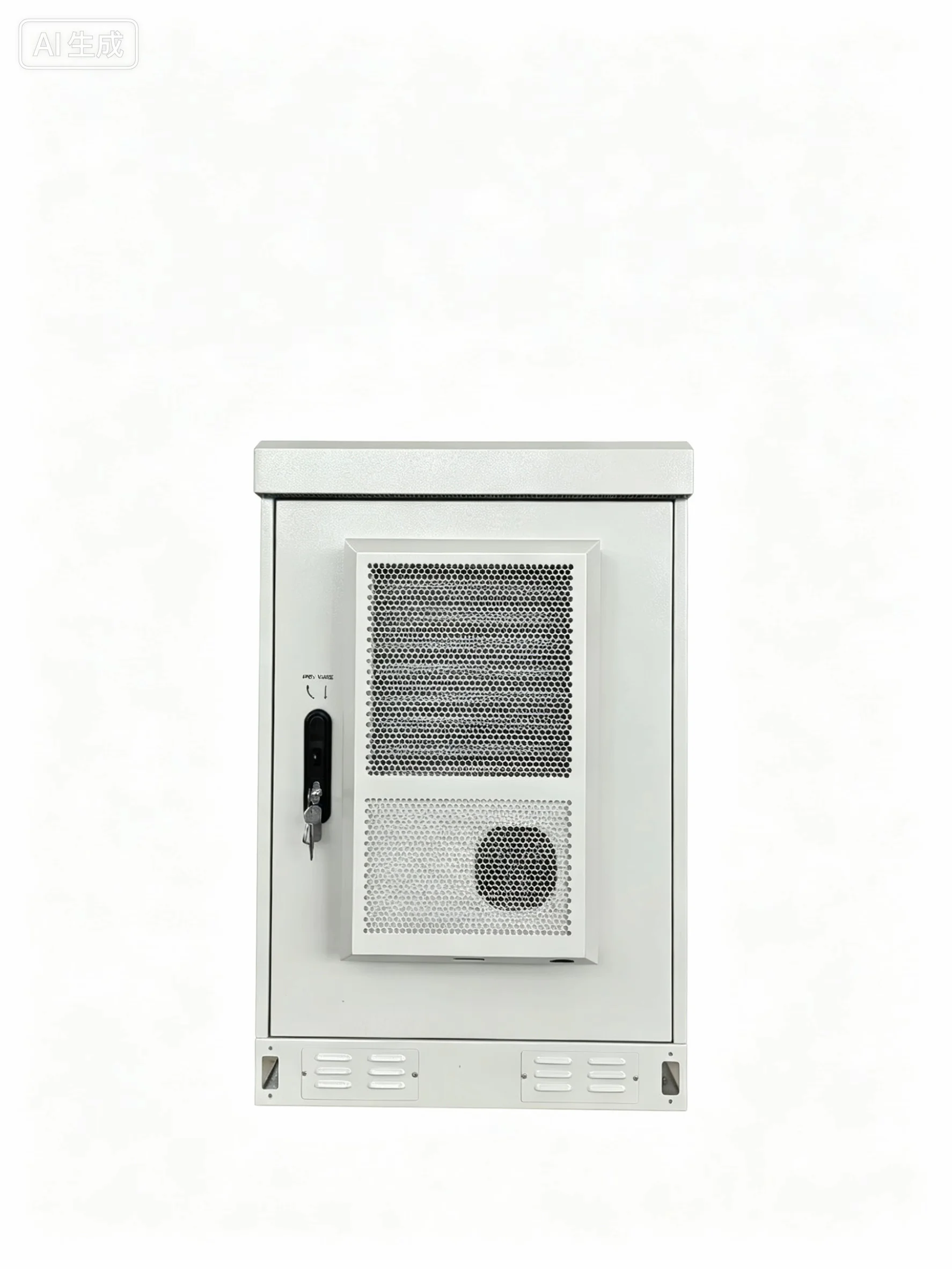

A semi-recessed DC cabinet air-conditioner is fitted on the cabinet door for temperature control without occupying internal cabinet space. Featuring rainproof and dust-proof performance, it effectively safeguards the operating environment for internal batteries and extends battery service life. It is applicable to various harsh field environments.
Technical Specifications
System Parameters
| Product name | Outdoor lead-acid battery cabinet (meeting 8pcs 12V 150Ah narrow batteries) |
Model | EC-8-FT12V150-2T1L-DC500W | |
Dimension（HxWxD） | External dimension： Inner dimension： | |
Material | Galvanized sheet | |
Insulation thickness | 20mm thick PEF insulation cotton | |
Maintenance method | Front door | |
Assembling method | Floor | |
Rack size | Two layer lead-acid battery rack | |
Protection level | IP55 | |
Working temperature | -40℃～+55℃ | |
Cool system | Cooling capacity 500W air conditioner (DC48V)+2 top mounted fans (DC48V emergency cooling) |
